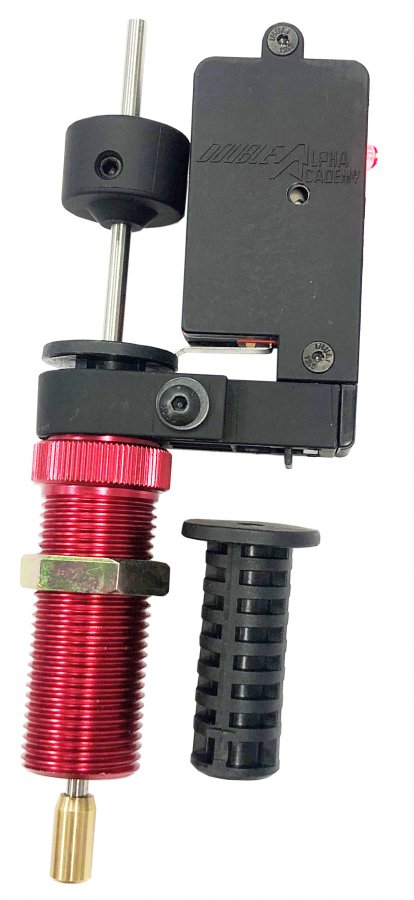

The DAA Magnetic Powder Check 2.0 (US Pat. Pending) is a great addition to most progressive reloading machine, helping to ensure the quality and safety of your reloaded ammo.
The unique new design uses a high-tech Reed Sensor and a magnet assembled to the plunger Rod, to assess if the charge in the case is of the correct height.
In the new 2.0 design, the Sensitivity Adjustability feature has been removed, in favor of placing the Reed sensor in a fixed position on a custom built PCB board. That fixed position is one that sets the accepted height variance to about 2.0-2.5mm, which is what we found to be the best setting for all. More than sufficient to pick up a double-charge, debris in the case or a case without powder.
This design change now allows all components to be PCB mounted on the custom board – making the electronics much more reliable and long lasting.
An additional improvement to the DAA Magnetic Powder Check 2.0 is that the polymer shoe on the end of the plunger rod (which contacts the powder) has now been replaced with a brass CNC machined part, which helps to reduce the static electricity which could cause some powder to be lifted out of the case.
The DAA Magnetic Powder Check 2.0 assembles onto a station immediately after your powder dropper, screwing into a standard die thread 7/8-14 station. However, unlike other powder check systems, the DAA product does not require a dedicated hole drilled through the tool head next to the station! It can be used on ANY progressive reloader which has an available station after the powder drop.
A powder-check does require the use of a station in your toolhead, so if you do not currently have an available station, you may need to combine your seating and crimping into one station using a 2-in-1 seat/crimp die to free up a station. These too are available from DAA.
The DAA Magnetic Powder Check 2.0 is activated off the top rim of the case rather than the base of the shell plate, this means that no alarm will sound if no case is present. The powder sensing plunger (now with brass shoe) enters into the case mouth to rest on top of the charge and measure its height, sounding an alarm if the powder level is either too low or too high. It provides both an audible beep alarm as well as a bright red LED light when triggered.
The DAA Magnetic Powder Check 2.0 includes a replacement short plunger, suitable for use with rifle ammo. When using for rifle, simply replace the plunger, and assemble the steel rod upside down, using the end without the brass shoe to enter into the small case mouth. Parts included make this suitable to use with all pistol ammo (9mm and up) and for rifle from .223 and larger.
It’s compact size, slick and modern design, ease of setup and adjustability, make the DAA Magnetic Powder Check 2.0 the perfect accessory for your toolhead!
Summary of features and advantages:
- Can be used on all toolheads, does not require a dedicated hole near station.
- Assembles onto any 7/8-14 station
- Provides both an audible AND a visual alarms
- Acceptance range of powder level is approx. 2.0-2.5mm. Easily enough to trigger an alarm in case of a double-charge or no-charge situation.
- Includes all parts for both rifle and pistol use
- Activates off the rim of the case, so no alarm sound when no brass is present
- Slim and compact design
- Quality materials. Stainless Steel Rod, Brass shoe, with an aluminum red anodized die body. Rubber coated glass-fiber reinforced nylon for electronic housing
- Custom PCB board for all electronic parts ensures reliability and longevity

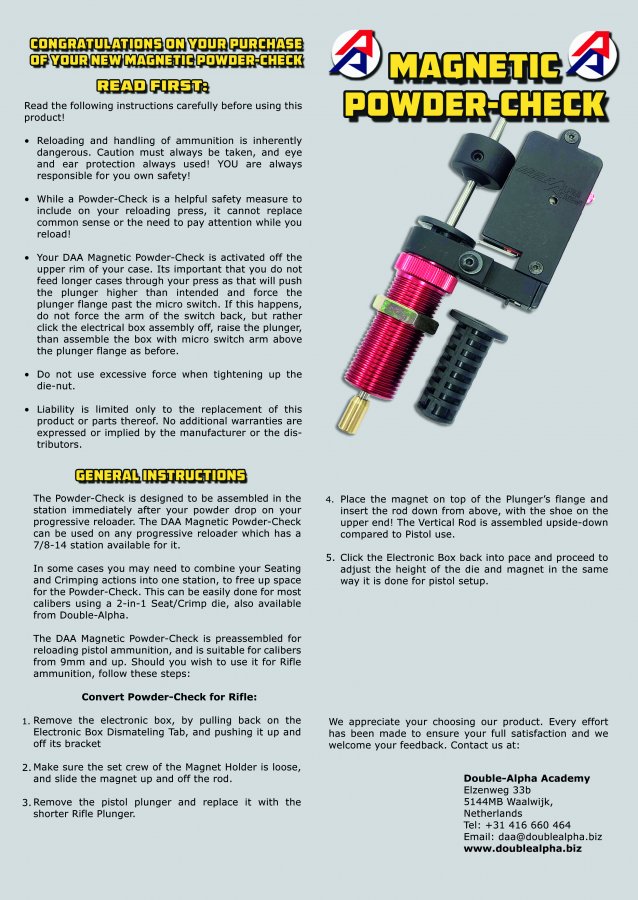

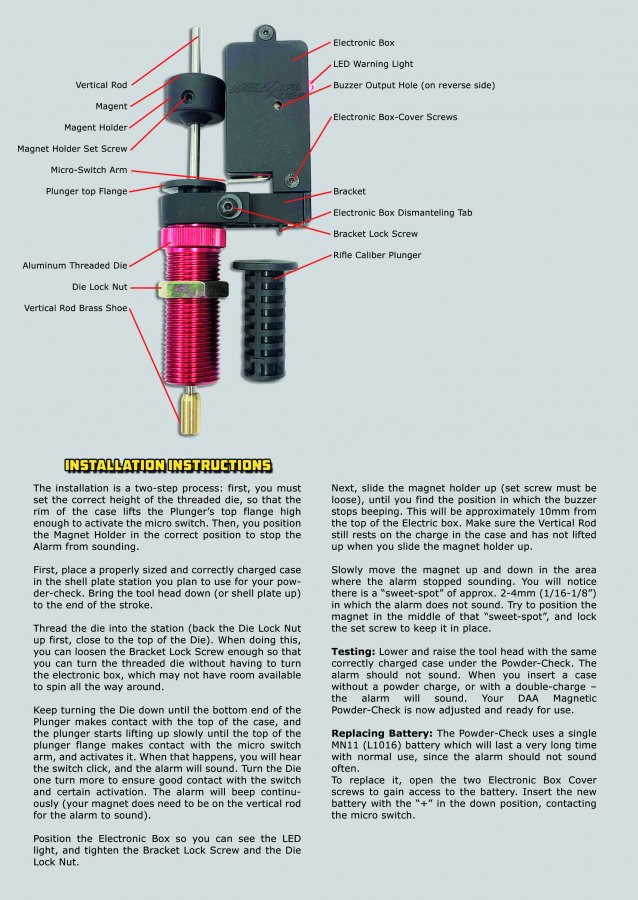

User Manual
Download - English
Note on .223 Caliber:
Due to the small case mouth of a .223 case, when measuring powder levels with a probe rod, the rod should be no more than 5mm in diameter. The shoe cannot be used, meaning the rod will penetrate deeper into the powder and won’t rest on top of it. To get consistent readings when reloading .223, it’s important to maintain a consistent speed during the reloading stroke. This ensures the rod moves at the same rate when it contacts the powder, allowing it to enter to a consistent depth each time.
Note: will not work with Frankford Arsenal X10.
